When it comes to precision machining, EDM (Electrical Discharge Machining) is a method that stands out. It offers unparalleled accuracy and intricate detailing that other machining processes struggle to achieve. But did you know that there are different types of EDM machining?

In this blog post, we will explore the three main types of EDM machining: wire EDM, sinker EDM, and hole drilling EDM. We’ll discuss their applications, differences, and advantages so you can make an informed decision when choosing the right EDM method for your project.

So, if you’re ready to dive into the world of EDM machining, let’s get started!

What Is EDM Machining?

EDM machining, also known as electrical discharge machining, is a cutting-edge technology used in the manufacturing industry. It involves using electrical discharges to shape and form metal parts with extreme precision. The EDM process works by creating a controlled spark between an electrode and the workpiece, which erodes the material to create the desired shape.

There are various names for EDM processes – spark eroding, wire erosion, spark machining, wire burning, and die sinking EDM.

EDM machining is especially useful for creating intricate and complex designs that would be difficult or impossible to achieve using traditional machining methods. This innovative technique has revolutionized the manufacturing industry, allowing for more precise and efficient production of high-quality metal components.

Whether used in aerospace, automotive, or medical industries, the EDM machining process offers unparalleled accuracy and versatility.

Types of EDM Machining

A. Wire EDM (Electrical Discharge Machining)

Wire EDM, also known as Electrical Discharge Machining, is a manufacturing process that utilizes electrical energy to remove materials. Here are the basic principles, applications in manufacturing, and advantages and limitations of this technique:

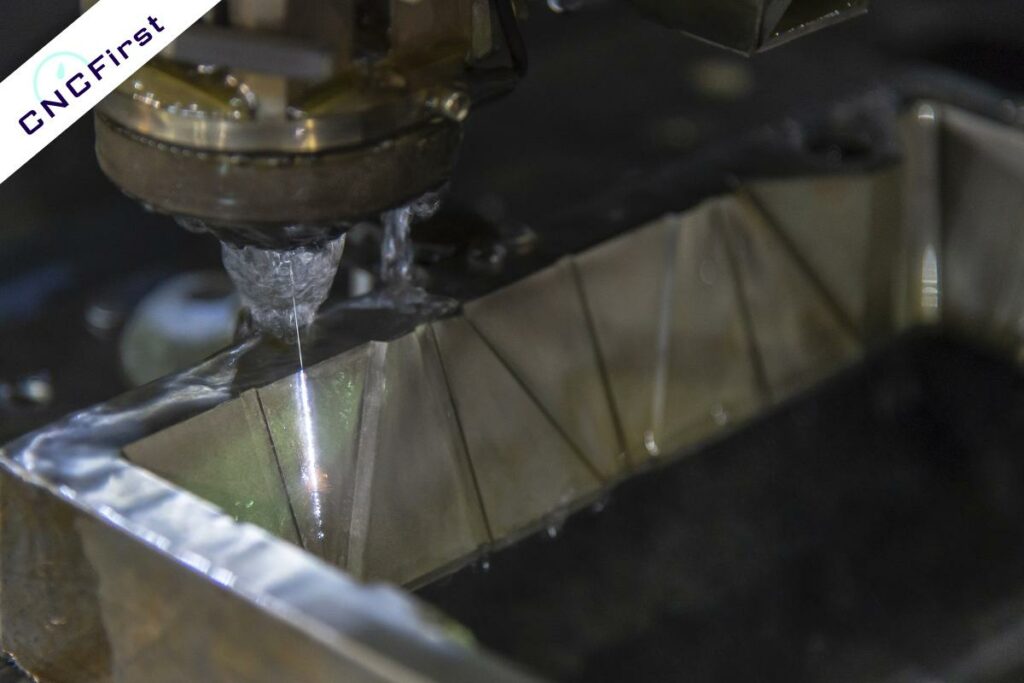

wire EDM machine

1. Basic Principles:

Wire EDM machine works by creating a controlled electrical discharge between the workpiece and a thin wire electrode.

The electrical discharge generates intense heat, melting the material and creating a small crater or cavity.

Precise control of the wire’s movement guides it along the desired path, cutting through the material.

2. Applications in Manufacturing:

Wire EDM is commonly used for making intricate shapes and complex contours in hard materials like steel, titanium, and carbide.

It is widely employed in industries such as aerospace, automotive, electronics, and medical devices.

This technique is particularly suited for producing molds and dies, extrusion tools, turbine blades, and precision parts.

3. Advantages and Limitations:


Wire EDM can achieve high precision with tolerances as tight as 0.001mm.

It does not generate mechanical forces during cutting, minimizing stress on the workpiece.

The process can be used on materials regardless of their hardness or toughness.


Wire EDM has slower cutting speeds compared to other machining methods.

The wire electrode needs to be replaced periodically due to wear.

It is not suitable for materials with poor electrical conductivity or those that are highly reflective.

In conclusion, Wire electric discharge machining is a versatile manufacturing technique that offers precise shaping capabilities for various industries. Its ability to work with hard materials makes it indispensable in modern production processes. However, its slower speed may limit its use in high-volume production scenarios.

B. Sinker EDM (Ram or Plunge EDM)

Sinker EDM, also known as Ram or Plunge EDM or conventional EDM, is a popular type of electrical discharge machining that utilizes a vertical electrode to create intricate cuts and shapes in metal workpieces.

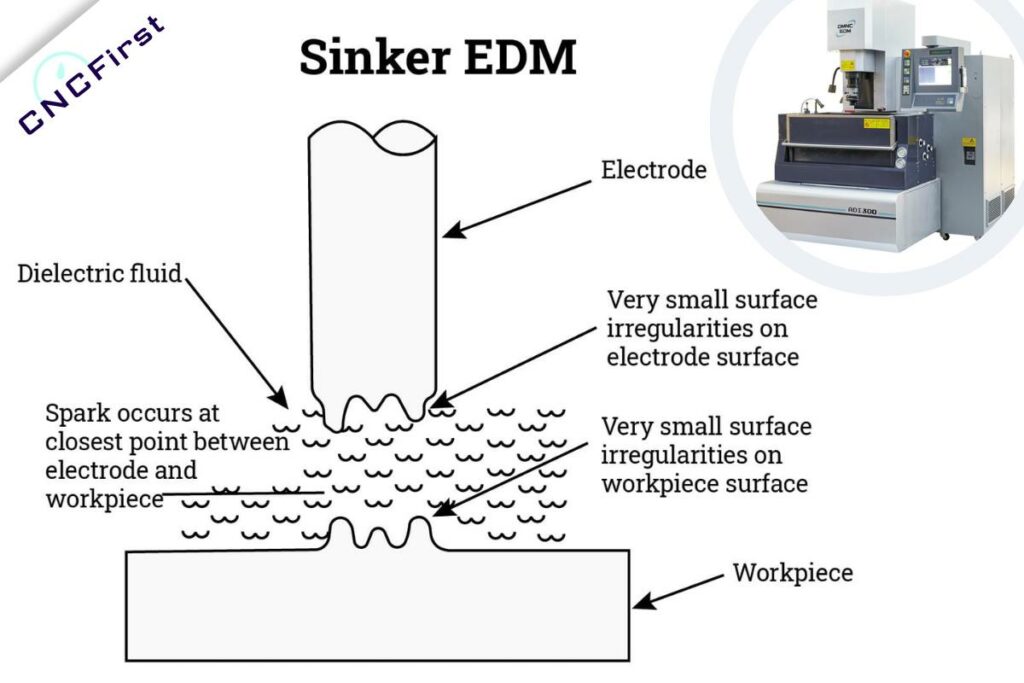

Sinker EDM machine

Operating Mechanism

The operating mechanism of ram EDM involves the use of an electrode that is immersed in a dielectric fluid. When an electrical current is applied, sparks are generated between the electrode and the workpiece, resulting in the erosion and removal of material. This process allows for precise and accurate shaping of metal components.


Sinker EDM is commonly used in various industries, such as aerospace, automotive, and tooling, where high precision and intricate detailing are required. It is particularly useful for creating molds, dies, and complex geometries that cannot be easily achieved with traditional machining methods. The ability to achieve tight tolerances and fine surface finishes makes Ram EDM an ideal choice for applications that demand exceptional accuracy.

Comparisons with Wire EDM

When comparing sinker EDM with wire EDM, it is important to note their distinct differences. While both processes rely on electrical discharge machining principles, sinker EDM uses a vertical electrode that directly contacts the workpiece, whereas wire EDM uses a thin wire that passes through the workpiece without direct contact.

This difference in operation allows conventional EDM to handle thicker workpieces with more stability and precision. However, wire EDM excels at cutting intricate shapes with tight radii due to its ability to maneuver through narrow gaps.

In conclusion, sinker EDM offers unique advantages in terms of its operating mechanism and specific use cases. With its ability to accurately shape hard materials and produce complex geometries, it has become an indispensable tool in various industries.

By understanding the comparisons between sinker EDM and wire EDM, manufacturers can make informed decisions about which method best suits their specific needs.

C. Hole Drilling EDM (EDM Drilling)

Hole drilling EDM, also known as EDM Drilling, is a specialized process used in various industries for creating precision holes in hard materials. The process involves the use of electrical discharges to erode material and create holes of different sizes and shapes.

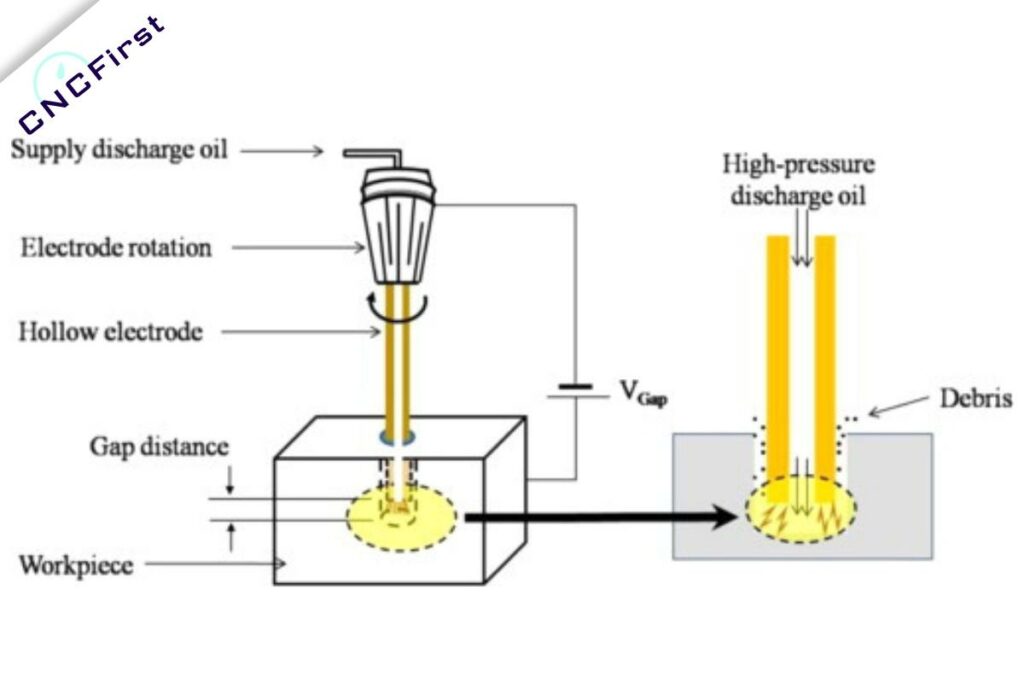

Hole Drilling EDM Machine


EDM Drilling is commonly used in industries such as aerospace, automotive, medical, and electronics, where precise and intricate hole patterns are required. Hole-drilling EDM facilitates the creation of cooling holes in turbine blades and other intricate components.


One of the distinct features of this process is its ability to drill holes with high aspect ratios, meaning the depth-to-diameter ratio can be relatively large. This makes it ideal for applications where deep holes or small-diameter holes are needed.

EDM drilling

Additionally, EDM Drilling offers several benefits, including high accuracy, excellent surface finish, and the ability to work with a wide range of conductive materials.

Overall, Hole Drilling EDM is a versatile and efficient method for creating complex hole patterns in various industrial applications.

Differences Between EDM Machining Types

A. Materials Processed:

– Wire EDM: This type of EDM machining is commonly used for cutting conductive materials such as steel, aluminum, copper, and brass.

– Sinker EDM: Sinker EDM is suitable for processing conductive materials like steel, titanium, and carbide.

– Hole Drilling EDM: Hole drilling EDM is mainly used for creating small holes in conductive materials such as hardened steel and exotic alloys.

B. Tolerances Achieved:

– Wire EDM: Wire EDM can achieve high precision with tolerances as tight as ±0.005mm (0.0002 inches).

– Sinker EDM: Sinker EDM can achieve tolerances between ±0.01mm to ±0.05mm (0.0004 to 0.002 inches), depending on the material and size of the part.

– Hole Drilling EDM: Hole drilling EDM can achieve tolerances ranging from ±0.02mm to ±0.08mm (0.0008 to 0.003 inches) depending on the diameter of the hole.

C. Speed and Efficiency:

– Wire EDM: Wire EDM is known for its high cutting speeds, making it efficient for large-scale production runs.

– Sinker EDM: Sinker EDM has slower cutting speeds compared to wire EDM but offers better surface finish quality.

– Hole Drilling EDM: Hole drilling EDM is relatively slower than wire and sinker EDM due to the nature of drilling small holes.

In conclusion, each type of EDM machining offers unique advantages based on the materials processed, tolerances achieved, speed, and efficiency requirements. Choosing the appropriate type depends on the specific needs.


From wire EDM to sinker EDM and hole drilling EDM, each type of EDM machining has its applications and differences.

Wire EDM is ideal for intricate and precise cuts, while sinker EDM is perfect for producing complex shapes and sharp corners. Hole drilling EDM, on the other hand, is specifically designed for creating small holes in hardened materials.

Understanding these different types of EDM machining can help you choose the right method for your specific needs and achieve high-quality results.

Whether you’re in the aerospace industry or the medical field, EDM machining offers a range of possibilities for precision manufacturing.

So, if you’re looking to take advantage of this advanced EDM service, don’t hesitate to explore the various types of EDM machining.


What materials are suitable for EDM machining?

EDM machining is versatile and can effectively work with a wide range of materials, including metals such as steel, aluminum, and titanium, as well as conductive ceramics. However, materials with poor electrical conductivity may pose challenges in the process.

How does EDM differ from CNC machining?

EDM (Electrical Discharge Machining) and CNC (Computer Numerical Control) machining differ fundamentally in their processes. While CNC machining relies on physical contact between tools and workpieces, EDM employs electrical discharges for material removal, making it a non-contact method ideal for intricate and precise detailing in industries like aerospace and medical manufacturing.

What are the safety considerations when using EDM machines?

Safety is paramount in EDM machining. Users should adhere to proper safety protocols, including wearing protective gear, ensuring adequate ventilation, and following guidelines for handling dielectric fluids. Additionally, understanding the equipment’s electrical systems and regularly maintaining machinery is crucial to prevent potential hazards in the workshop. Types of EDM machining available and find the one that best suits your requirements.
