Ever wondered what makes the difference between a flawless CNC-machined part and one that’s just… not quite right? As a CNC machining parts manufacturer with years of experience in the industry, we’ve seen it all. One critical step that often determines the success of a production run is First Article Inspection (FAI).
Today, we’re here to share our expertise on FAI, shedding light on why it’s essential and how it ensures the quality and precision of every part we produce.
Let’s dive into the nuts and bolts of this vital process and how it can make or break your CNC machining project.
What is First Article Inspection (FAI) in CNC Machining?
First Article Inspection (FAI) in CNC machining is a thorough verification process where the first produced part is meticulously inspected to ensure it meets all specified requirements.
This inspection serves as a benchmark for the entire production run, confirming that the CNC machining process is set up correctly and capable of producing parts within tolerance.
The purpose of FAI is to catch any discrepancies early, preventing costly errors in mass production.
Industry standards like AS9102 guide this process, providing a structured approach to documenting and verifying the conformance of the first article, ensuring consistent quality in subsequent parts. This inspection ensures that every aspect of the production process meets the stringent quality standards required for high-performance industries.
Who performs the First Article Inspection?
In most cases, the First Article Inspection (FAI) is conducted by the part manufacturer. This is usually agreed upon in the purchase order, as it provides a level of quality assurance for the customer. However, if the supplier lacks the necessary in-house facilities for FAI, the inspection may be outsourced to a metrology lab.
In such cases, the metrology lab carries out the inspection and completes the FAI report. This ensures that the inspection is thorough and meets the required standards, even if the manufacturer cannot perform it internally.
Steps Involved in First Article Inspection (FAI) in CNC Machining
Pre-Inspection Preparation:
Collecting Necessary Documentation: Gather all relevant design drawings, specifications, and material certifications needed for the FAI process.
Understanding Design Specifications and Requirements: Review the design intent, tolerances, and any specific customer requirements to ensure accurate inspection.
First Article Production:
CNC Machining the First Article: Manufacture the initial part using the same processes, materials, and setups that will be used for full-scale production.
Documenting the Machining Process: Record all parameters, including machine settings, tool paths, and any adjustments made during production.
Inspection Process:
Dimensional Inspection: Measure the part against the design specifications, checking all critical dimensions, tolerances, and geometries.
Material and Finish Verification: Confirm that the material composition and surface finish meet the required standards and specifications.
FAI Report Compilation:
Creating and Reviewing the FAI Report: Compile the inspection results, including measurements, material certifications, and any deviations from the specifications.
Approval and Submission of the Report: Review the FAI report for accuracy and completeness before submitting it to the customer for approval.
When Do You Need a First Article Inspection?
When a Part is Manufactured for the First Time:
FAI is essential to verify that the initial production meets all design and quality requirements.
When a Part’s Design is Updated:
Any changes in the design, even minor ones, require a new FAI to ensure the modifications are correctly implemented.
When the Manufacturing Process Changes:
If there’s a change in equipment, such as switching from a 3-axis CNC machine to a multi-axis machine, FAI is needed to confirm the process still produces parts that meet specifications.
When the Manufacturer Changes Location:
A new location might introduce variables that impact production quality, necessitating a fresh FAI.
When a Significant Period Has Elapsed Between Orders:
Time gaps can affect process consistency, making FAI important to ensure quality remains unchanged.
Benefits of Conducting First Article Inspection (FAI)
Ensures Product Consistency: FAI verifies that the manufacturing process consistently produces parts that meet design specifications, reducing the risk of defects.
Identifies Issues Early: By catching potential problems in the initial production stage, FAI helps avoid costly errors and rework in later stages.
Builds Customer Confidence: Conducting FAI demonstrates a commitment to quality, fostering trust and confidence from customers.
Improves Process Efficiency: FAI provides valuable feedback on the manufacturing process, enabling adjustments that can enhance efficiency and reduce waste.
Compliance with Industry Standards: FAI ensures that production meets relevant industry standards, such as AS9102, which is particularly important in regulated industries like aerospace.
Tools Used for FAI Process

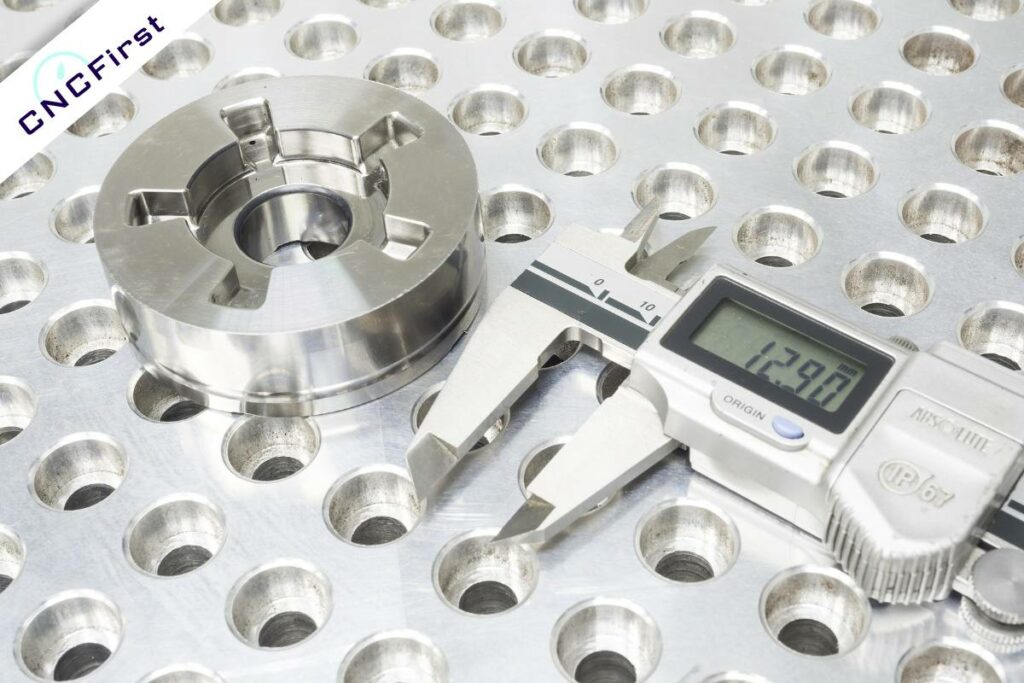

Manual Measurement Tools: Tools like calipers, micrometers, dial indicators, and surface plates are essential for measuring dimensions and verifying tolerances during FAI.

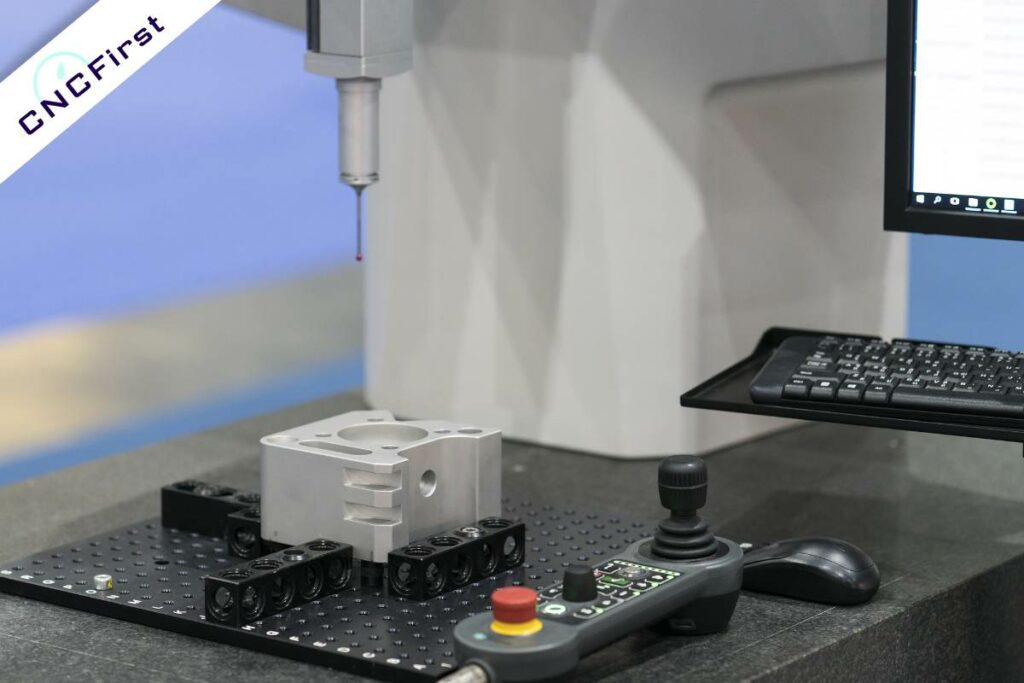

Coordinate Measuring Machine (CMM): A CMM is a crucial tool in FAI, providing precise, automated measurements of complex geometries and ensuring accuracy in three-dimensional spaces.
Mechanical Testing Tools: Beyond dimensions, mechanical properties are critical. Engineers use tools like spectrometers and hardness testers to verify material composition and mechanical properties, ensuring they meet the required standards.
These tools collectively ensure that every aspect of the part, from dimensions to material properties, is thoroughly inspected and meets the necessary specifications during the FAI process.
What is the Production Part Approval Process (PPAP)?
Production Part Approval Process (PPAP) is a standardized procedure used in manufacturing. It can ensure that a supplier’s production process consistently produces parts that meet all design and quality requirements.
It involves a series of documents and samples that demonstrate a supplier’s ability to produce parts to specification during an actual production run.
PPAP is commonly suitable for the automotive and aerospace industries to ensure reliability and consistency in mass production, helping to prevent defects and ensure customer satisfaction.
Conclusion
Understanding the importance of First Article Inspection (FAI) can make a significant difference in the success of your CNC machining projects. By ensuring every detail is meticulously checked, you can avoid costly mistakes and ensure top-notch quality. As a CNC machining parts expert, we deliver precision with every project, and can provide the first article inspection report.
At CNCFIRST, we’re your trusted partner for prototype design and manufacturing services. With state-of-the-art in-house measurement equipment, our quality assurance process includes material inspection, FAI, process checks, and final testing. Contact us today for a free quote on your next project, and let us help you achieve flawless results.
