Have you ever wondered what makes EDM (Electrical Discharge Machining) tick? Well, you’re in the right place! As a seasoned CNC machined parts manufacturer with years of wire EDM machining technique experience, we’re here to demystify the magic behind it. Today, we’re diving into the seven common conductive materials used in the EDM process.
These materials are the unsung heroes, making precise and intricate machining possible. From the robust tool steel to the versatile aluminum, we’ll explore why each material shines in EDM. Buckle up and get ready for a journey through the electrifying world of conductive materials!
EDM Tool Steel/Steel

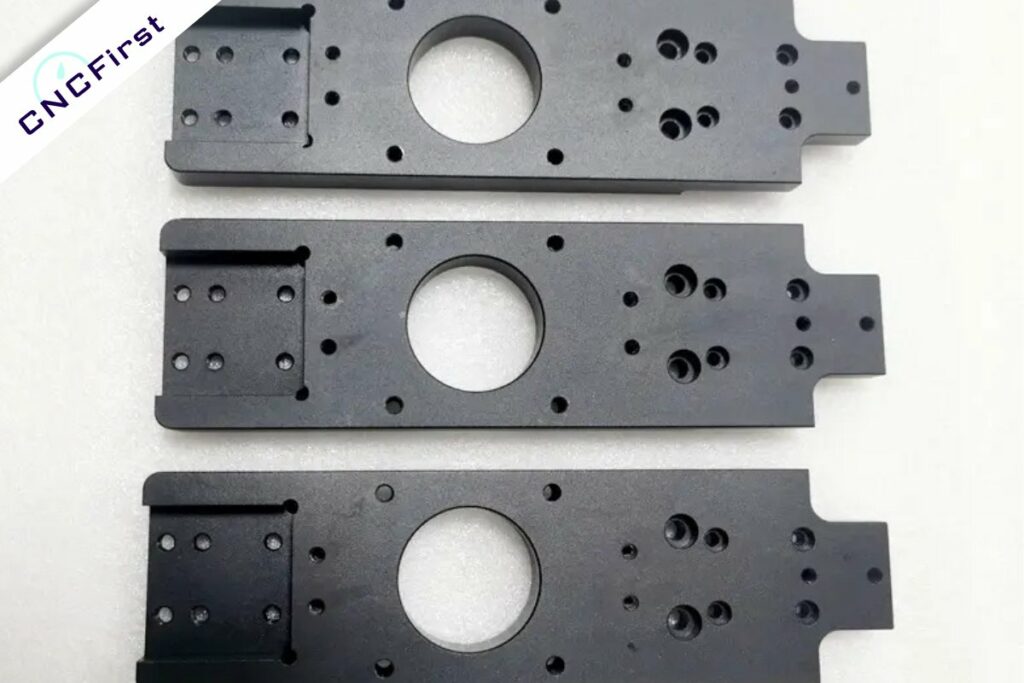

Tool steel is a go-to material for EDM due to its high wear resistance and toughness. It handles the intense heat and stress of the EDM process like a pro. Whether you’re machining dies, molds, or intricate parts, tool steel provides the durability needed for precision work.
Types of Tool Steel for EDM
There are several types of tool steel commonly used in EDM. D2 offers high wear resistance, A2 provides a good balance of toughness and wear resistance, and S7 is known for its shock resistance. Each type has unique properties that make it suitable for different EDM applications.
Advantages and Disadvantages of Tool Steel in EDM
Tool steel’s main advantage is its durability, which ensures long-lasting and precise machining. However, it can be more expensive than other materials and may require more careful handling due to its hardness. Despite these challenges, its performance in demanding EDM tasks often justifies the cost and effort.
EMD Aluminum
Aluminum is one of the most popular conductive materials for EDM, thanks to its excellent conductivity and machinability. It is lightweight yet strong, which makes it ideal for intricate and detailed machining. Its corrosion resistance is a bonus, ensuring longevity and reliability in various applications.
Applications of Aluminum in EDM

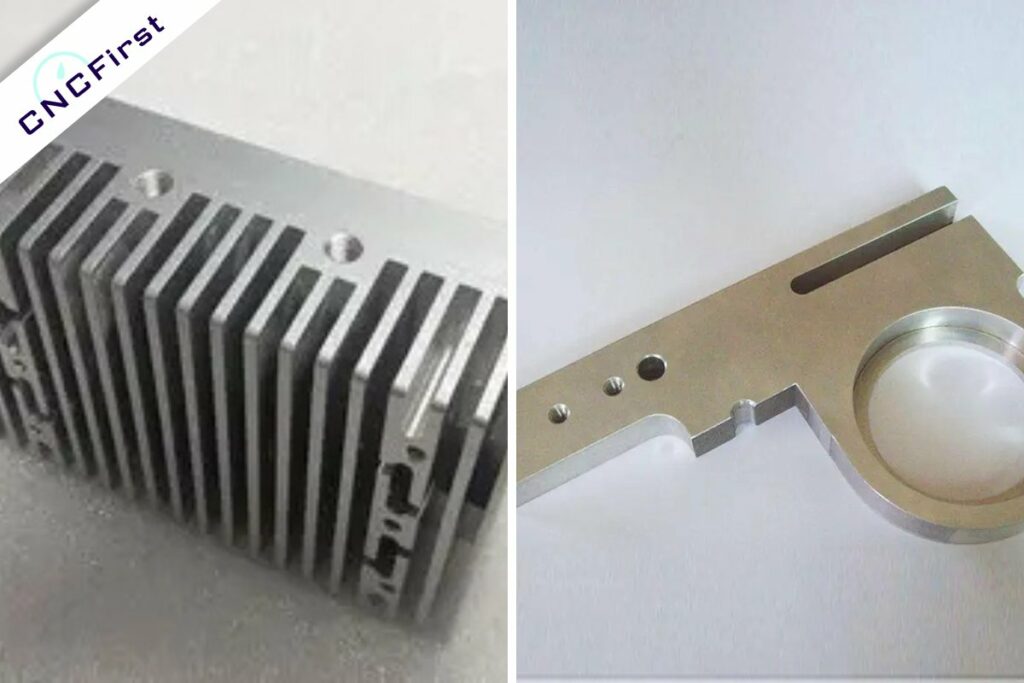

Aluminum is widely used in the aerospace, automotive, and electronics industries. It is perfect for creating detailed components like engine parts, structural components, and heat sinks. Its versatility and ease of machining make it a preferred choice for manufacturers needing precision and efficiency.
Benefits and Limitations of Aluminum in EDM
The main advantages of using aluminum in EDM are its high conductivity, lightweight nature, and corrosion resistance. However, it can be prone to galling and may not be as durable as harder metals.
Machining Tips for EDM Aluminum:
- Use high-quality, sharp electrodes to reduce wear.
- Optimize the electrical parameters to avoid excessive heat.
- Maintain proper flushing to remove debris efficiently.
- Use a dielectric fluid suitable for aluminum to enhance performance.
- Regularly inspect and replace worn-out components to ensure precision.
EDM Brass
Brass stands out among conductive materials for EDM due to its excellent electrical conductivity and corrosion resistance. Its machinability is top-notch, allowing for precise and efficient processing, making it a favorite for intricate and detailed work.
Use Cases for Brass in EDM
Brass is commonly used in applications requiring high precision, such as electrical connectors, components in the aerospace and automotive industries, and decorative items. Its ability to produce fine details makes it ideal for complex and delicate parts.
Pros and Cons of Brass in EDM
Brass offers great machinability and conductivity, ensuring high-quality results. However, it can be more expensive than other metals and might wear out faster under high-stress conditions.
EDM Copper
Copper is a prime choice among conductive materials for conventional machining due to its superior electrical conductivity and thermal properties. Copper alloys like 101 and 110 are highly pure, offering excellent corrosion resistance and machinability, ensuring precise and efficient results.
Common Applications and Machining Tips
Copper is widely used in electrical components, heat exchangers, and intricate molds. To optimize EDM performance with copper alloys, follow these tips:
- Reduce the duration of the electric discharge machining spark to minimize sublimation.
- Increase amperage to maintain spark intensity.
- Use negative polarity and high amperage settings to reduce electrode wear and improve material removal.
- Ensure adequate flushing with sufficient pressure and flow to remove debris without causing turbulence.
EDM Tungsten
Tungsten has an exceptionally high melting point and excellent electrical conductivity. Its robust nature allows it to withstand the intense heat and stress of the EDM process, making it ideal for creating durable and precise components in demanding environments.
Applications of Tungsten in EDM

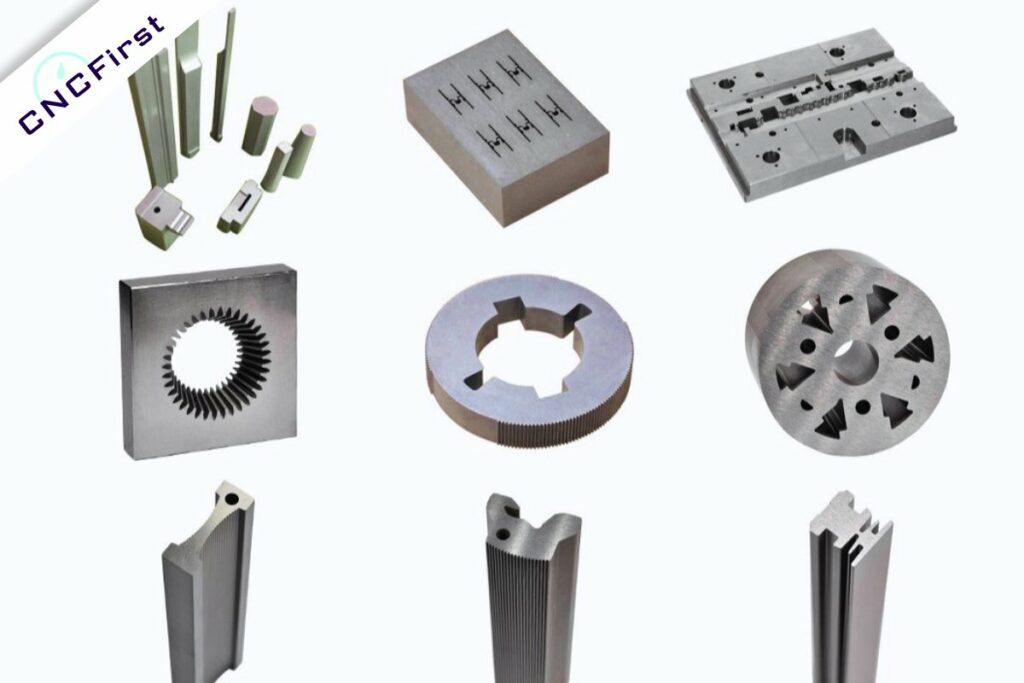

Tungsten is commonly used in industries that require high-performance materials, such as aerospace, defense, and electronics. It is ideal for machining intricate parts like electrodes, dies, and components exposed to high temperatures. Tungsten’s durability and precision make it indispensable in these critical applications.
EDM Titanium
Titanium is a standout among conductive materials for EDM due to its high strength-to-weight ratio, excellent corrosion resistance, and good electrical conductivity. These properties make it ideal for demanding applications requiring both durability and precision.
Applications and Benefits of Titanium in EDM
Titanium is commonly used in aerospace, medical devices, and automotive industries for components like engine parts, implants, and high-performance fasteners. Its main advantages include exceptional durability and biocompatibility. However, titanium can be challenging to machine and is more expensive than other metals.
EDM Nickel
Nickel is known for its high-temperature resistance and corrosion resistance, making it challenging to machine using traditional methods. However, EDM can easily cut through nickel, allowing for the production of highly complex and precise parts. These properties make nickel a valuable material in demanding applications.
Three Types of EDM Machining Process
There are three types of EDM machining.
Die-sinking EDM
Die-sinking EDM, also known as ram EDM or conventional EDM, involves using a pre-shaped electrode to form a cavity in the workpiece. This method is ideal for creating complex shapes, intricate cavities, and detailed molds. The electrode is typically made from graphite or copper and is submerged in a dielectric fluid, which helps to cool and flush away debris. Die-sinking EDM is widely used in the aerospace, automotive, and tooling industries for manufacturing precision parts and molds.
Wire EDM
Wire EDM, or wire-cut EDM, uses a thin, electrically charged wire to cut through the workpiece. This method is perfect for creating intricate shapes and fine details, as it can achieve high precision and tight tolerances. The wire, usually made of brass or copper, moves along a programmed path, cutting the material with a series of electrical discharges. Wire EDM is commonly used for producing parts with complex geometries, such as gears, surgical instruments, and aerospace components.
Hole-drilling EDM
Hole-drilling EDM, also known as fast hole EDM, specializes in drilling small, precise holes in hard materials. This method is efficient for creating cooling holes in turbine blades, fuel injectors, and other components requiring high accuracy and depth-to-diameter ratios.
Conclusion
For EDM process, choosing the right conductive material is crucial for achieving precision and efficiency. From the robustness of tool steel to the versatility of aluminum and the unique properties of tungsten, each material offers distinct advantages for specific applications. Understanding these materials helps in selecting the best option for your EDM projects, ensuring high-quality and durable results.
Ready to elevate your EDM projects with the best electrode materials? Contact us today for expert advice and top-notch wire EDM CNC parts. Let’s make your next project a success together!
