304 vs 316 Stainless Steel: What’s the Difference?

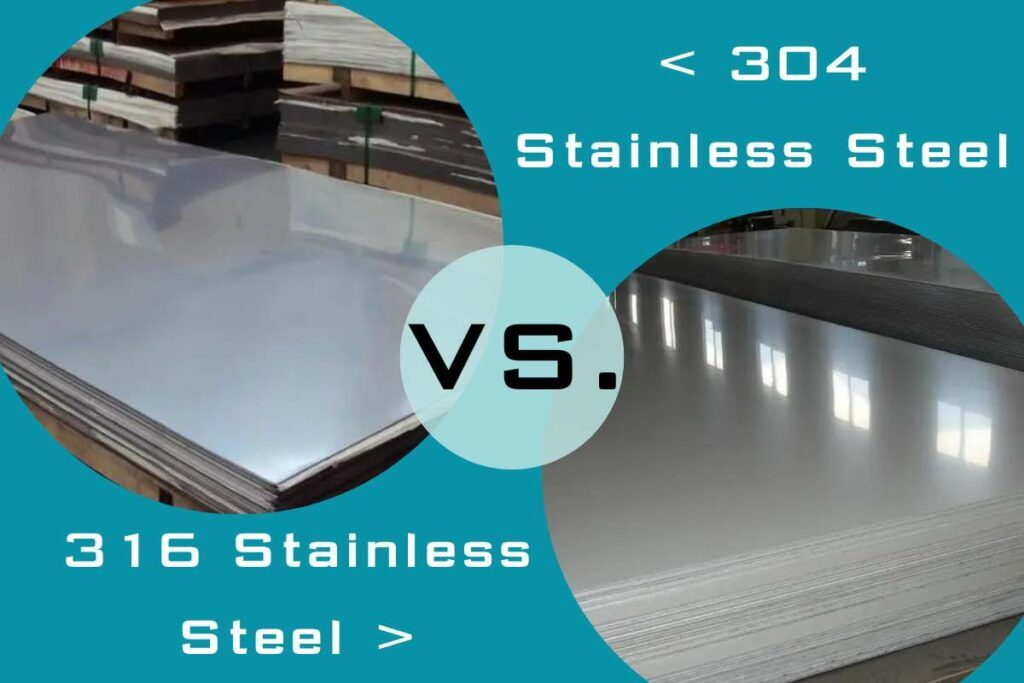

304 vs 316 stainless steel

Stainless steel, a cornerstone in modern construction and manufacturing, boasts a reputation for durability, versatility, and aesthetic appeal. Among its diverse range, two grades particularly stand out: 304 and 316 stainless steel. These variants have become the go-to choices for a myriad of applications, from kitchenware to marine equipment. This post delves into the intricacies of “304 vs 316 Stainless Steel,” shedding light on their differences and helping you make an informed decision for your specific needs.

Whether you’re a manufacturer, a hobbyist, or simply curious, understanding these two prominent grades is crucial in the world of metallurgy.

Basic Composition of 304 Stainless Steel and 316 Stainless Steel

When diving into the realm of stainless steel, understanding the elemental composition is paramount. The unique blend of elements in each grade determines its properties, strengths, and potential applications. In the debate of “304 vs 316 Stainless Steel,” the elemental differences play a pivotal role. 304 and 316 are the two most common grades of stainless steel.

Grade 304 stainless steel, often referred to as the most versatile and widely used stainless steel, primarily consists of iron, followed by 18% chromium and 8% nickel. It may also contain traces of carbon, manganese, silicon, phosphorous, sulfur, and nitrogen. Its machinability and weldability also make it a top choice in CNC machining and sheet metal fabrication.

Properties of 304 Stainless Steel

properties of 304 stainless steel

On the other hand, grade 316 stainless steel, is another austenitic stainless steel. While also encompassing iron, 18% chromium, and 10% nickel, has an added element that sets it apart: molybdenum, typically around 2-3%. This addition of molybdenum enhances its resistance to corrosion, especially in chloride environments.

Chemical Composition of 316 Stainless Steel

element of 316 stainless steel

In essence, while both 304 and 316 grades share several core elements, it’s the presence of molybdenum in 316 that distinguishes it from its counterpart. This subtle yet significant difference in composition is a key factor when choosing between these two stainless steel grades for specific applications.

Difference Between 304 And 316 Stainless Steel

The Role of Molybdenum

Molybdenum, a lesser-known but vital element in the metallurgical world, finds its place in 316 stainless steel but is conspicuously absent in the 304 variant. This strategic inclusion isn’t arbitrary; it serves a pivotal purpose.

Molybdenum acts as a shield, enhancing the steel’s resistance to specific types of corrosive environments, especially those rich in chlorides. When stainless steel is exposed to such conditions, there’s a risk of pitting, a form of extremely localized corrosion. The presence of molybdenum in 316 significantly reduces this risk, granting it a superior edge in combating corrosion compared to 304.

In summary, while both 304 and 316 stainless steels offer commendable resistance to a wide range of corrosive agents, it’s the molybdenum in 316 that provides an added layer of protection, especially in more challenging environments.

Welding and Forming Properties

Transitioning from composition to functionality, the “304 vs 316 Stainless Steel” debate extends to their welding and forming capabilities. Both these grades are renowned for their exceptional welding properties, making them favorites in industries where joining metals is paramount. Furthermore, their adaptability in forming processes, from bending to spinning, is noteworthy.

However, when comparing the two, subtle differences emerge. While 304 stainless steel welds are known for their versatility and adaptability to a variety of techniques, 316 stainless steel exhibits slightly better welding characteristics, especially in challenging conditions. This edge is primarily due to its molybdenum content, which aids in reducing the risk of weld decay.

In conclusion, both 304 and 316 stainless steels stand out for their welding and forming prowess. Yet, for those seeking an extra layer of reliability in welding, 316 might be the more suitable choice.

Heat Treatment and Cold Working

Diving deeper into the technicalities, it’s essential to highlight a shared characteristic between 304 and 316 stainless steel: neither can be hardened through heat treatment. This might seem counterintuitive given their robust nature, but it’s a fundamental trait of these stainless steel grades.

However, not all paths to strength rely on heat. Both 304 and 316 stainless steels can undergo a transformation through cold working. By processes such as cold rolling or drawing, these metals can achieve increased strength and hardness. The act of deforming the steel at room temperature not only enhances its mechanical properties but also refines its structure, leading to improved strength and durability.

In essence, while traditional heat treatments might not be the route for hardening these grades, the avenue of cold working offers a promising alternative to achieve the desired strength and resilience.

Applications Across Industries

Stainless steel, with its myriad of beneficial properties, finds its way into a plethora of industries, each harnessing its unique attributes. When it comes to 304 and 316 stainless steel, their applications are as diverse as they are essential.

304 stainless steel parts

Starting with 304 stainless steel, its versatility is evident in its widespread use. Often dubbed the “food-grade” stainless steel, it’s a staple in kitchen equipment, from cutlery to sinks. Beyond the culinary world, 304 graces architectural panels, railings, and even some automotive parts, thanks to its excellent formability and resistance to oxidation.

On the other hand, 316 stainless steel, with its enhanced corrosion resistance, is the preferred choice in more aggressive environments. Its resistance to chloride corrosion makes it invaluable in marine applications, such as boat fittings and coastal architectural features. Additionally, the pharmaceutical, medical, and chemical processing industries lean towards 316 for its resilience against corrosive agents.

In a nutshell, while 304 stainless steel is a jack-of-all-trades, finding its place in a multitude of applications, 316 stainless steel is the specialist, chosen for environments where superior corrosion resistance is paramount. Both grades, in their respective domains, have proven indispensable in modern industry.

Cost Implications

When weighing the merits of “304 vs 316 Stainless Steel,” cost inevitably enters the equation. Generally, 316 stainless steel comes with a heftier price tag compared to its 304 counterpart. But why this disparity?

The primary factor driving this cost difference is the inclusion of molybdenum in 316. This element, while enhancing corrosion resistance, also adds to the production expenses. Additionally, the slightly higher nickel content in 316 further elevates its cost.

In essence, while 304 offers a more economical choice for general purposes, the advanced properties of 316, especially in challenging environments, justify its higher cost.

Conclusion

In the discourse of “304 vs 316 Stainless Steel,” both grades emerge as champions in their respective arenas. While 304 shines for its versatility and widespread applications, 316 stands out for its enhanced corrosion resistance, especially in challenging environments. The presence of molybdenum in 316 gives it that extra edge, making it a preferred choice in marine and chemical industries.

In essence, the decision between these two stalwarts hinges on the specific requirements of the task at hand. As you venture into your next project, consider the unique strengths of each grade, ensuring your choice aligns perfectly with your needs.

FAQs

Q1: Should I use 304 or 316 stainless steel?

The choice between 304 and 316 depends on your specific needs. For general applications and kitchenware, 304 is suitable. However, for environments prone to corrosion, especially marine settings, 316 with its added molybdenum offers better resistance.

Q2: Is 304 stainless steel common?

Yes, 304 stainless steel is one of the most commonly used stainless steel grades, often referred to as the “food-grade” stainless due to its widespread use in kitchen equipment and utensils.

Q3: Which stainless steel is more durable 304 or 316?

While both 304 and 316 are durable, 316 has superior corrosion resistance due to the presence of molybdenum. This makes it more durable in aggressive environments compared to 304.

Q4: Will a magnet stick to 316 stainless steel?

316 stainless steel is generally non-magnetic in its annealed state. However, it can become slightly magnetic when cold works. It’s less magnetic than some other stainless steel grades.

Q5: How can I tell if my stainless steel is 304 or 316?

A simple way is to test its magnetic properties. While both can be non-magnetic, 316 is less likely to be magnetic than 304. For a definitive answer, chemical analysis or specialized tests are recommended.
